SMART UV High-Output Systems, E50S, E80S, E120S and E150S
These commercial systems feature high-output (HO), T6-style lamps.
High-quality UV systems feature a watertight sealed design and can be used safely both indoors and outdoors. They are an excellent choice for everything from small koi ponds to large recirculating systems.
SMART UV units have a 5 ¾" diameter housing and the slip unions accommodate 2" (reducer provided), 2.5” or 3” piping systems. Each model features low pressure lamps with remote-style ballasts with 16' power cords (10’ cable to ballast and 6’ cord). UV vessels are built of a UV-resistant, high density polymer with a removable end cap to provide easy access. Internal viewing ports allow visual indication of lamp status.
50, 80, and 120 watt units are dual voltage 115/230VAC; 150 watt units can be ordered in either 115VAC or 230VAC
These commercial systems feature high-output (HO), T6-style lamps.
High-quality UV systems feature a watertight sealed design and can be used safely both indoors and outdoors. They are an excellent choice for everything from small koi ponds to large recirculating systems.
SMART UV units have a 5 ¾" diameter housing and the slip unions accommodate 2" (reducer provided), 2.5” or 3” piping systems. Each model features low pressure lamps with remote-style ballasts with 16' power cords (10’ cable to ballast and 6’ cord). UV vessels are built of a UV-resistant, high density polymer with a removable end cap to provide easy access. Internal viewing ports allow visual indication of lamp status.
50, 80, and 120 watt units are dual voltage 115/230VAC; 150 watt units can be ordered in either 115VAC or 230VAC
These commercial systems feature high-output (HO), T6-style lamps.
High-quality UV systems feature a watertight sealed design and can be used safely both indoors and outdoors. They are an excellent choice for everything from small koi ponds to large recirculating systems.
SMART UV units have a 5 ¾" diameter housing and the slip unions accommodate 2" (reducer provided), 2.5” or 3” piping systems. Each model features low pressure lamps with remote-style ballasts with 16' power cords (10’ cable to ballast and 6’ cord). UV vessels are built of a UV-resistant, high density polymer with a removable end cap to provide easy access. Internal viewing ports allow visual indication of lamp status.
50, 80, and 120 watt units are dual voltage 115/230VAC; 150 watt units can be ordered in either 115VAC or 230VAC
More Info
Includes a 1-year warranty on sterilizer ballasts, 3-year on housing due to UV damage, and a 90-day warranty on lamps.
System Features
• Housing Material: Heavy-Wall UV Resistant High-Density Polymer
• Housing Size: Refer to Chart Above (UV Vessel Dimensions)
• Housing Pressure (Max.): 20 psi / 1.378 bar

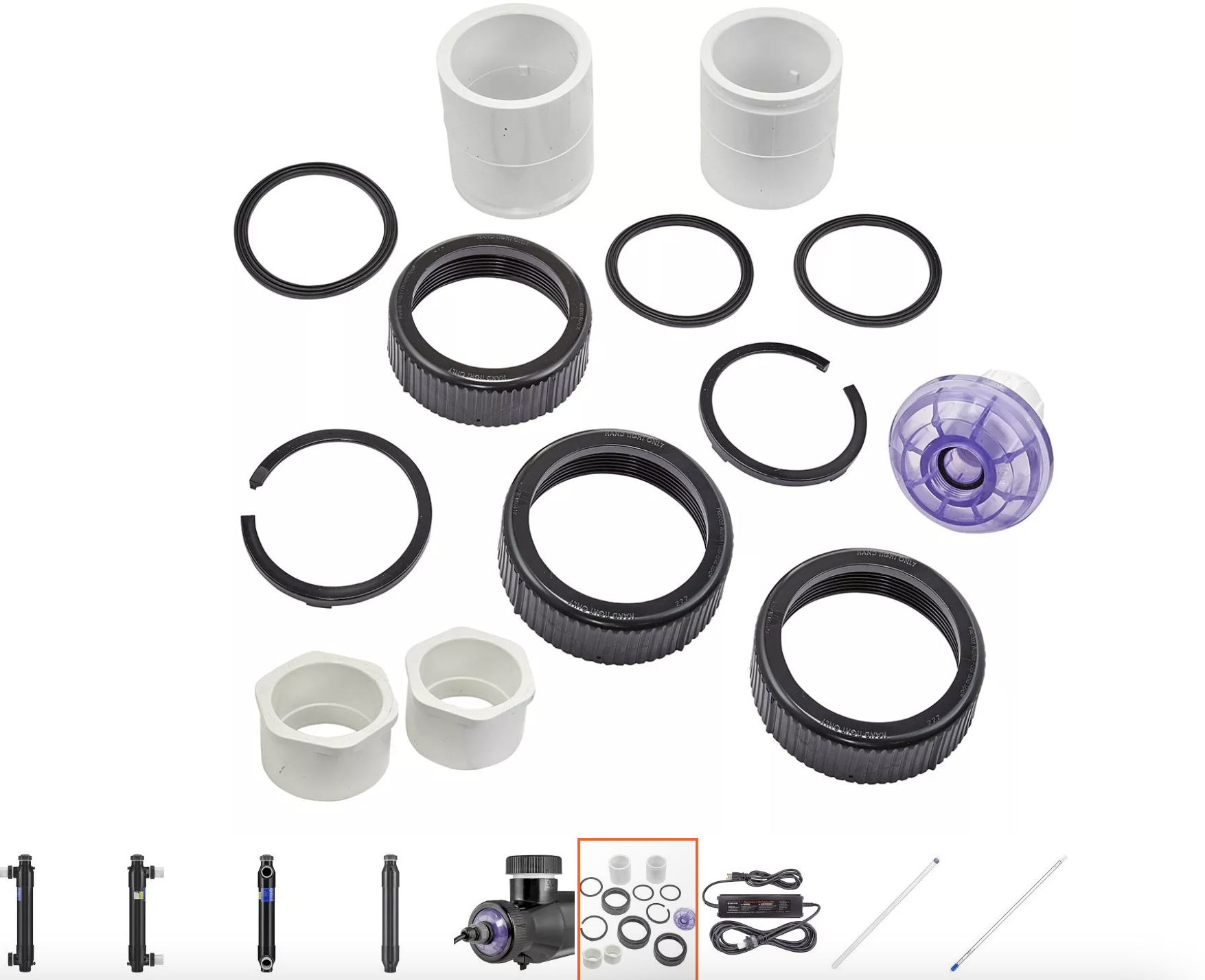

• Housing Inlet/Outlet Port Size: 2” Union
• UV Lamp(s): Low-Pressure High-Output, T6-style
• In-line, sealed watertight power supply for wet applications.
Note: Fluence (UV Dose) calculated using UVT factors of 90%T and UV lamps at the end of their useful lamp life (12,000-hours).
EPA Est. No.: 091668-FL-001.
Please click link below: Pentair Aquatic Eco-Systems How to Replace UV Sterilizer's Lamp and Quartz Sleeve tutorial.
